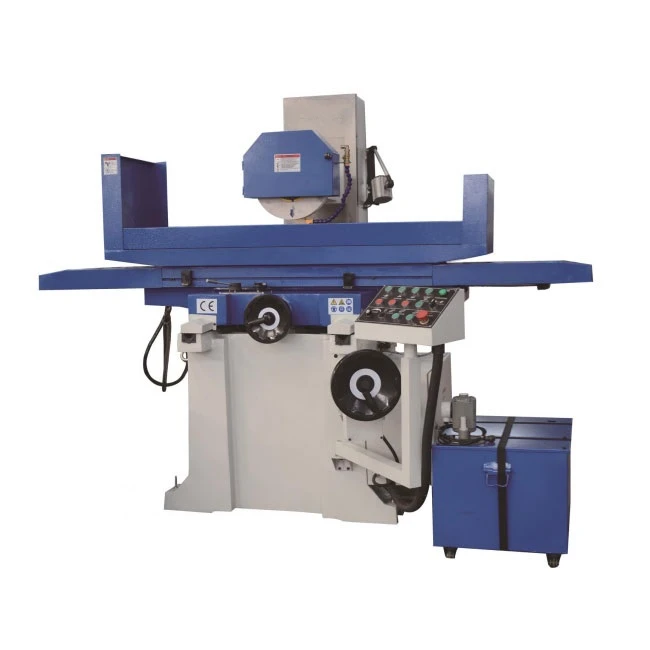

Precision Hydraulic Nto Sib Tsoo Tshuab
Qauv: MX-4080AH / AHR
Lub rooj loj (L * W): 806x406mm
Ntev mus ntev tshaj plaws: 830mm
Txoj kab uas hla: 420mm
Qhov deb ntawm lub rooj saum npoo mus rau qhov chaw spindle: 480mm
Sib nqus chuck loj: 800x400mm
Kev ceev ntawm lub rooj longitudinal txav: 7 ~ 16m / min
- Ceev ceev
- Kev Muaj Peev Xwm Zoo
- 24/7 Cov Neeg Siv Khoom

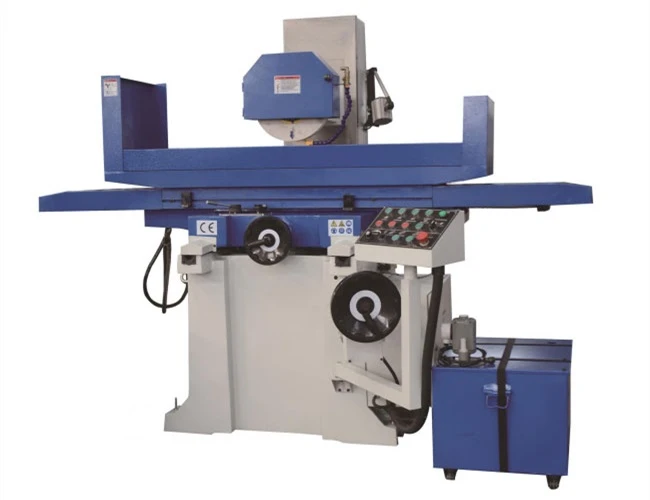

Khoom Taw qhia
MX-4080AH / AHR series precision hydraulic nto sib tsoo tshuab muaj cov qauv tsim nyog, zoo rigidity, zoo nkauj tsos thiab ua haujlwm yooj yim. Nws tuaj yeem zom ntau cov dav hlau thiab cov txheej txheem molding. Nws yog tsim rau kev sib tsoo tsis muaj motorized pub. Nws tuaj yeem nruab nrog cov sib nqus chuck mus tas li lossis electromagnetic chuck raws li cov neeg siv xav tau.
Lub tshuab no siv cov txheej txheem yas qhia qhov chaw ntxiv rau precision scraping, imported hydraulic kis tau tus mob, thiab synchronous sib tsoo kis. Lub ntsiab mechanical valve ntawm lub system yog ib tug tshwj xeeb valve rau grinders, muab faib ua ob feem, mechanical reversing tswj, throttling ceev tswj. Lub throttling ceev tswj ib feem kuj muaj ib tug unloading muaj nuj nqi, uas muaj peev xwm paub qhov pib thiab nres ntawm lub workbench.
|
Ib nrab -Auto |
|
|
Ntsug |
Kev nrawm nrawm thiab phau ntawv |
|
Hla |
Auto intermittent |
|
Ntev |
Hydraulic |
Technical Parameters
|
Qauv |
MX-4080AH/AHR |
|
|
Qhov loj me (L * W) |
806 x 406 mm |
|
|
Ntev mus ntev tshaj plaws |
8 30mm |
|
|
Hla tranal |
420 hli |
|
|
Qhov deb ntawm lub rooj saum npoo mus rau qhov chaw spindle |
480 hli |
|
|
Sib nqus chuck loj |
800 x 400 mm |
|
|
Ceev ntawm lub rooj longitudinal txav |
7 ~ 16m / min |
|
|
Rooj transverse txav |
Nws pib pub |
0.1 ~ 8 hli |
|
Ceev ceev |
990m / min |
|
|
Pub ntawm handwheel |
0.02mm/div. |
|
|
Wheelhead ntsug txav |
Nws pib pub |
/ |
|
Ceev ceev |
990mm / min |
|
|
Pub ntawm handwheel |
0.01mm/div. |
|
|
Sib tsoo log |
Ceev |
50HZ 1440 rpm; 60HZ 1750 rpm |
|
Loj (OD * W * ID) |
φ300x30xφ75mm |
|
|
Spindle lub cev muaj zog |
4 kwv |
|
|
Hydraulic lub cev muaj zog |
2.2 kwm |
|
|
Lub tshuab cua txias |
0.09 kwm |
|
|
Elevating lub cev muaj zog (AHR) |
0.25kw (AHR) |
|
|
Hla feed motor |
0.04 kwm |
|
|
Max. loading peev ntawm lub rooj (xws li sib nqus chuck) |
200 kg |
|
|
Tag nrho cov nqi zog |
7 kwv |
|
|
Qhov siab ntawm lub tshuab |
18 40mm |
|
|
Hla hnyav |
2000 kg |
|
|
Ntim qhov loj (L * W * H) |
2500x2000x2220mm |
|
