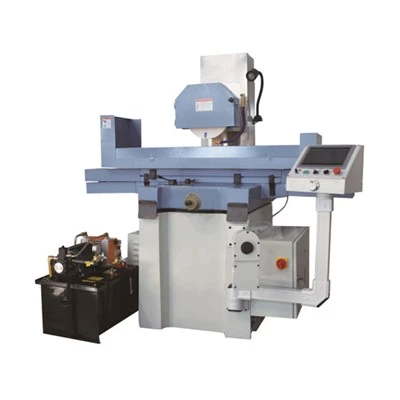

3 Axis Tsis Siv Neeg Nto Grinder
Qauv: MX-2550AHD
Max. workpiece rau hauv av (L * W): 500x250mm
Max. Sib tsoo ntev: 520mm
Max. Sib tsoo dav: 260mm
Qhov deb ntawm lub rooj saum npoo mus rau qhov chaw spindle: 430mm
Ua haujlwm siab tshaj plaws: 200kg
Lub rooj loj (L * W): 500x250mm
Kev ceev ntawm lub rooj ua haujlwm: 18m / min
- Ceev ceev
- Kev Muaj Peev Xwm Zoo
- 24/7 Cov Neeg Siv Khoom
Khoom Taw qhia
MX-2550AHD series 3 axis automatic nto grinder tshuab yog ib qho ntawm cov tshuab uas muaj zog thiab muaj txiaj ntsig. Nws yog tsim los xa cov precision siab thiab qhov tseeb uas yog qhov tseem ceeb rau cov txheej txheem tsim khoom niaj hnub no. Nws yog tsim los nrog siab - cov ntaub ntawv zoo thiab cov khoom siv siab heev uas tuaj yeem ua haujlwm hnyav yam tsis muaj kev tawg lossis hnav tawm. Nrog nws cov neeg siv-phooj ywg interface, cov neeg ua haujlwm tuaj yeem ua haujlwm sai thiab teeb tsa lub tshuab kom ua tiav cov txiaj ntsig xav tau.
Nws tuaj yeem ua tiav cov txheej txheem sib tsoo, nws tso cai rau lub tshuab ua haujlwm tsis muaj kev cuam tshuam rau lub sijhawm ntev, txo qhov xav tau kev so ntau zaus lossis kev cuam tshuam ntawm phau ntawv. Qhov no ua kom cov khoom tsim tau, txhim kho kev ua haujlwm, thiab txuag lub sijhawm thiab cov peev txheej muaj txiaj ntsig.
Technical Parameters
|
Qauv |
MX-2550AHD |
|
Max. workpiece rau hauv av (L * W) |
500 x 250 mm |
|
Max. Sib tsoo ntev |
5 20mm |
|
Max. Sib tsoo dav |
260 hli |
|
Qhov deb ntawm lub rooj saum npoo mus rau qhov chaw spindle |
4 30mm |
|
Swb txoj kev |
Ib lub tiaj rail ib V rail |
|
Ua haujlwm siab tshaj plaws |
200 kg |
|
Lub rooj loj (L * W) |
500 x 250 mm |
|
Tus naj npawb ntawm T-slot |
14 x1n |
|
Ceev ntawm lub rooj ua haujlwm |
18m / min |
|
Hla pub rau ntawm tes |
0.02mm / Kawm tiav 4 / kiv puag ncig |
|
Vertical MPG pub |
0.001 / 0.01 / 0.1 / Kawm tiav (mm); 0.1 / 1 / 10 / kiv puag ncig (mm) |
|
Log loj (diaxwidthxbore) |
φ200x20xφ31.75mm |
|
Spindle ceev (50HZ) |
2840rpm ua |
|
Tag nrho lub zog ntawm hluav taws xob lub cev muaj zog |
4 kwv |
|
Spindle lub cev muaj zog |
1.5 kwv |
|
Lub machined nto ntawm lub hauv paus ntawm parallelism |
0.003 hli |
|
Nto roughness |
0,32m ua |
|
Vertical feeding servo lub cev muaj zog |
0.75 kwm |
|
Hla pub lub cev muaj zog ntawm lub rooj |
0.04 kwm |
|
Yam tsawg kawg ntawm tus lej |
60L |
|
Coolant twj tso kua mis |
0.04 kwm |
|
Ntim qhov loj (L * W * H) |
1980x1500x1980mm |
|
Tag nrho qhov hnyav / Net nyhav |
1.27T/ 1.15T |
