CNC Centerless Sib Tsoo Khoom
Qauv: MX{0}}S200
Max. Sib tsoo txoj kab uas hla: 2-60mm
Sib tsoo Log Specification: P500x200x305mm
Regulating Log Specification: P350x200x203mm
Min Pub Ntau: 0.001mm
CNC System: SIEMENS, FANUC, MITSUBISHI
- Ceev ceev
- Kev Muaj Peev Xwm Zoo
- 24/7 Cov Neeg Siv Khoom
Khoom Taw qhia
MX-S200 siab- precision CNC centerless sib tsoo cov cuab yeej yog nruab nrog siab CNC tswj tshuab, uas ua rau nws ua haujlwm nyuaj nrog yooj yim. Nws nta cov kev sib tsoo zoo thiab ruaj khov thiab tuaj yeem ua tiav qhov kev sib tsoo ntawm lub tshuab ua haujlwm thiab tau txais cov txiaj ntsig zoo ib yam txawm tias ntawm cov ntawv thov xav tau tshaj plaws.
Nta:Kev hloov pauv sai: Los ntawm kev siv lub tsev qiv ntawv preset txheej txheem, cov khoom hloov pauv tsuas yog yuav tsum tau thov kev pab cuam, txo lub sijhawm teeb tsa ntau dua 70%.
Kev ua haujlwm tsis tu ncua:Nruab nrog rau qhov tsis tu ncua - qhov kub thiab txias qhov system thiab lub zog ntsuas ntsuas rau lub log sib tsoo, nws ua kom tsis muaj kev cuam tshuam ntau tshaj 72 teev.

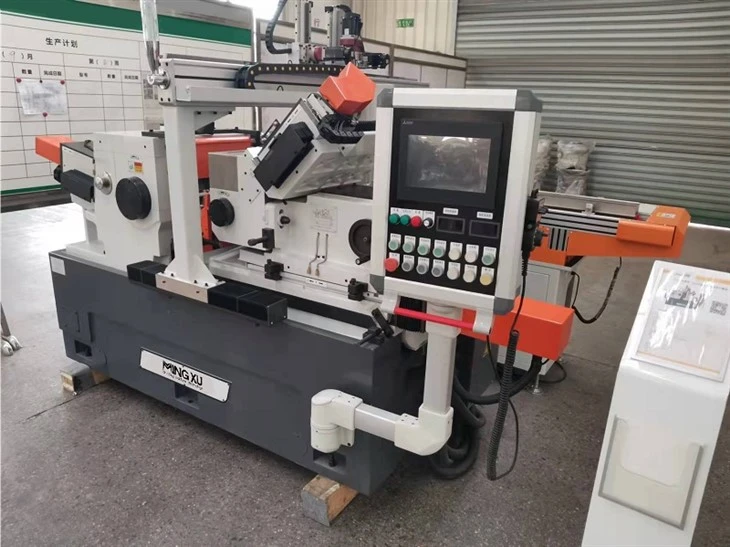

MX-S200 CNC Centerless Grinder
Cov yam ntxwv ua haujlwm
* Regulating log spindle nrog ob lub cylindrical cov menyuam bearing, tsim los rau ob chav bracing hom nrog siab rotation precision.
* Lub regulating log pub swb yog nruab ob "V" cov menyuam txoj kev thiab servomotor uas tsav ncaj qha pob screws.
* Muab ob npaug rau "V" cov lus qhia rau kev sib tsoo thiab tswj lub log hnav khaub ncaws reciprocating.
Technical Data
|
Khoom npe |
Super Siab Precision Centerless Grinder |
|
Qauv |
MX -S200 |
|
Plunge-feed |
|
|
Sib tsoo txoj kab uas hla |
2-60 hli |
|
Max. Sib tsoo Length |
190 hli |
|
Los ntawm -feed |
|
|
Sib tsoo txoj kab uas hla |
2-60 hli |
|
Sib tsoo Log Specification |
P500x200x305mm |
|
Regulating Log Specification |
P350x200x203mm |
|
Sib tsoo log ceev |
1338 r / min |
|
Regulating Log Ceev (stepless) |
10-200r / min |
|
Regulating Wheel Frame Swivel Angle |
|
|
Ntsug |
-2℃- +5 degree |
|
Kab rov tav |
-1℃- +3 degree |
|
Regulating Log Min Pub Tus Nqi |
0.001 hli |
|
Sib tsoo Log Dresser Min Feed Amount |
0.001 hli |
|
Qhov siab ntawm Centerline ntawm Gri. Log & Reg. Lub log ua haujlwm so |
200 hli |
|
Dej ntws |
50L / min |
|
Tag Nrho Lub Zog |
|
|
Sib tsoo Log Tsav |
18.5 KW TSI |
|
Regulating Log Tsav |
3 KW |
|
Lub tshuab nqus dej twj tso kua mis |
0.25 kWm |
|
Lubrication Pump Motor |
0.09 kWm |
|
Sib nqus Coolant Separator Tsav |
0.18 kWm |
|
Fais fab mov |
3N 50Hz 380V |
|
Tshuab Dimension (LxWxH) |
2800x2500x1600mm |
|
Tshuab hnyav |
Txog 5000Kg |
|
Qhov tseeb (Standard Bars) |
|
|
Roundness |
0.001 hli |
|
Cylindricity |
0.0018 hli |
|
Roughness |
0.16m r ib |
